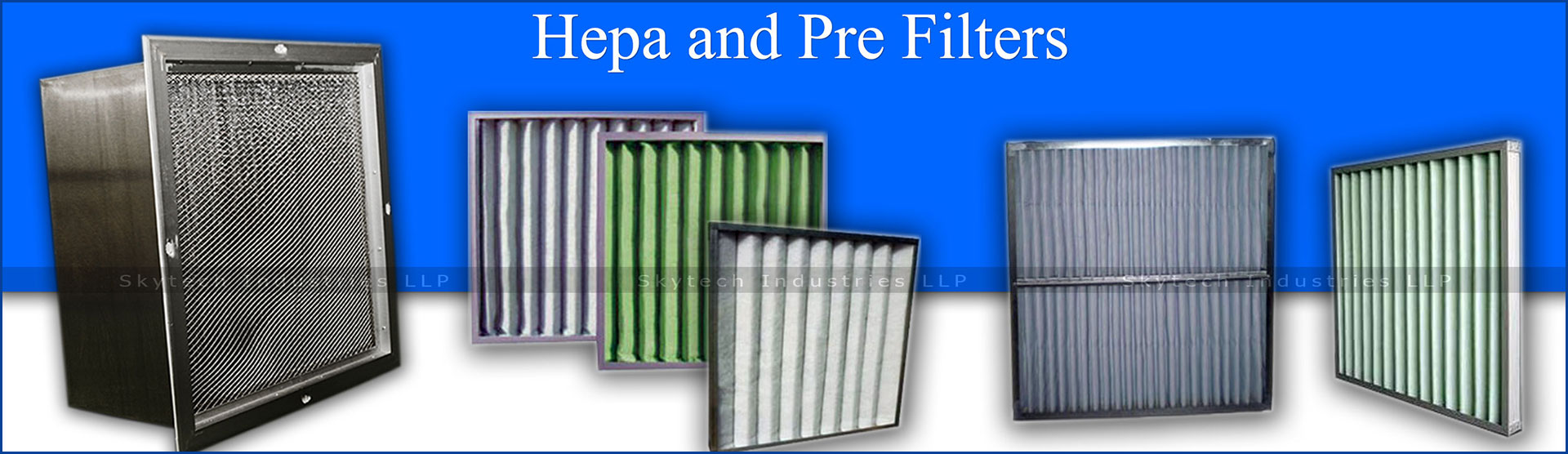

Hepa and Pre Filters

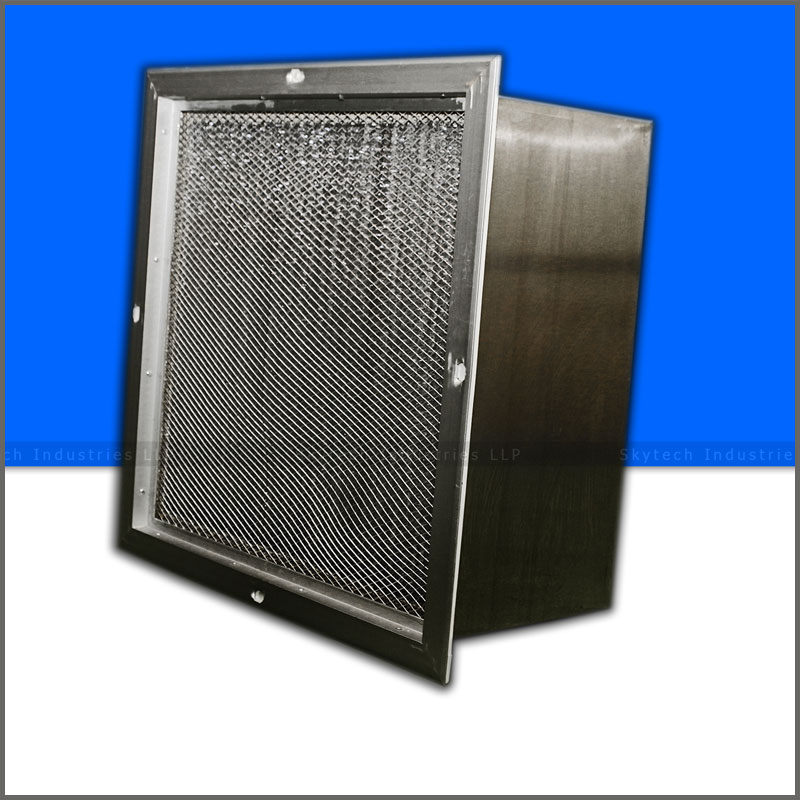

Hepa Filters are designed to meet requirements of very fine filtration up to 0.3 micron at high efficiency of 99.99 %. Due to hydrophobic & oleo phobic treatment on media, it does not allow any moisture & oil contents to pass through it.
SIZES
Customized sizes as per the requirement of client.

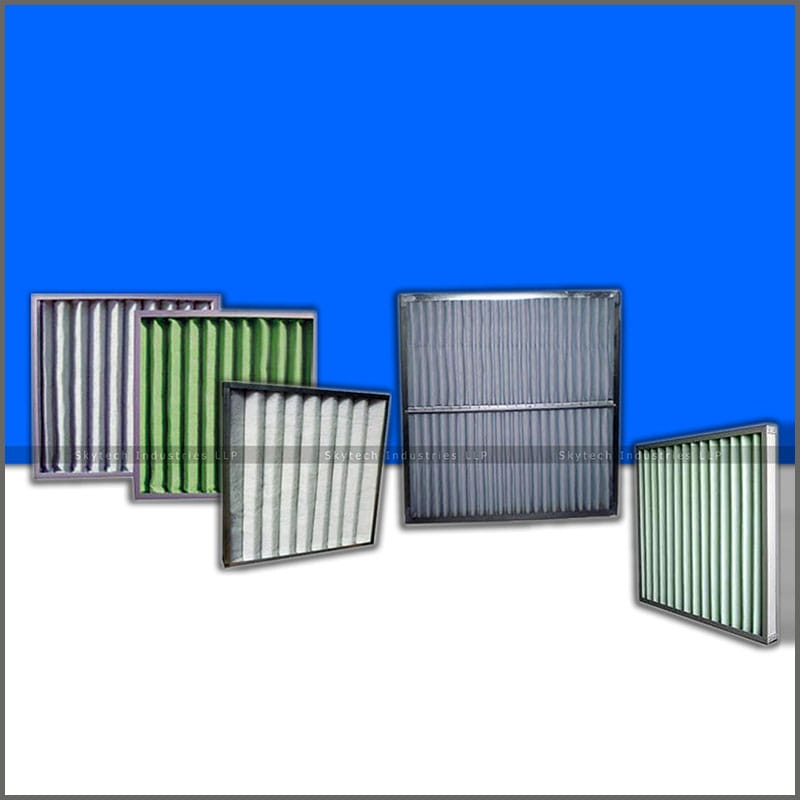

Pre Filters
Pre Filters For Automobile Industry
| Model | G4 |
|---|---|
| Dimensions W*D*H (mm) : | 595X595X50 595X495X50 595X295X50 495X495X50 295X295X50 |
| Airflow : | 3200 2700 1600 2200 800 |
| Initial Resistance PA : | 45 |
| Efficiency : | 90% G4 |
| Frame Material : | Aluminium |
| Media Material : | Synthetic or HDPE |
Pre Filters For Pharma Industry
| Size : | 610 x 610 x 50/100 / 150 mm Box / Flange Type |
| Filtr. Level : | 90% down to 10 Micron |
| Initial Pressure Drop : | 3 mm of W.G. |
| Final Pressure Drop : | 15 / 20 mm of W.G. |
| Frame : | G.I. |
| Media : | HDPE |
| Washable : | Yes |
HVAC PRE FILTER
| Size : | 610 x 610 x 50/100 / 150 mm |
| Type : | Box / Flange Type |
| Filtr. Level : | 90% down to 10 Micron |
| Initial Pressure Drop : | 3 mm of W.G. |
| Final Pressure Drop : | 15 / 20 mm of W.G. |
| Frame : | G.I. / Cardboard |
| Media : | HDPE / Synthetic Fibre |
